August 29, 2013

Custom Oil Filled Transformer, 150 KVA, P/N 6282L

Product Overview:

L/C Magnetics can provide custom oil filled pad mounted transformers for many applications. We can build single phase, three phase and Scott T transformers from 5 KVA to 2000 KVA. The photo of an oil cooled transformer are shown below.

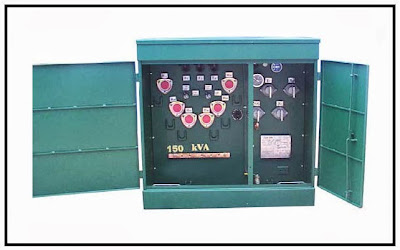

Custom Oil Filled Padmount Transformer, 150 KVA, P/N 6282L


Specifications:

  • Custom Oil Filled Medium Voltage Transformer: 150 KVA, 3 PH, 60 Hz, P/N 6282L
  • Primary: 13,200 VAC - 23,000 VAC - 34,500 VAC (Delta)
  • Secondary: 220/127 VAC, Wye
  • Applied standards: NMX-J-116-ANCE / C.F.E.Standard / ANSI C57.12

The Accessories of the Oil Type Transformer are shown below:


    • No. load External Tap Changer 5 position
    • 2 positions below and 2 positions above nominal +-10%
    • Drain and sample valve
    • Oil level indicator
    • Temperature indicator
    • Automatic ½. press rise valve


    L/C Magnetics is a Custom Oil Filled Transformer supplier. To discuss your specific application, please call us toll free at (800) 595-7096, or send us an email at info@lcmagnetics.com.
