Multiple Output Auto Transformer, 5.5 KVA, P/N 18571, Input 208 VAC, Output 220/230/240 VAC

Product Overview

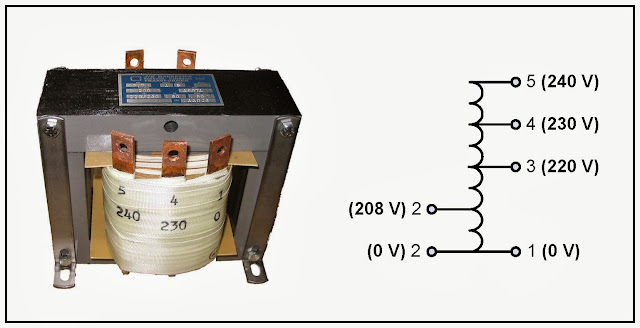

The photo of the 5.5 KVA multiple output transformer, part number 18571, is shown below. This unit is ideal for 208 to 220/230/240 step up application. Auto transformers are much cheaper than isolation transformers. A comparable isolation transformer will be 5 times bigger in size with higher cost.

208 to 220/230/240 Auto Transformer

Specifications:

• Multiple Output Auto Transformer 5.5 KVA, 1 PH, 60 Hz, P/N 18571
• Input 208 VAC (Pin 1 and 2)
• Output 220/230/240 VAC, 25 Amps
• Open core and coil: 7.5″ W x 7.5″ H x 7.5″ D
• Weight: 40 lbs
